Whilst piecing together my engine parts I noticed the difference in the way tappet chest covers were made

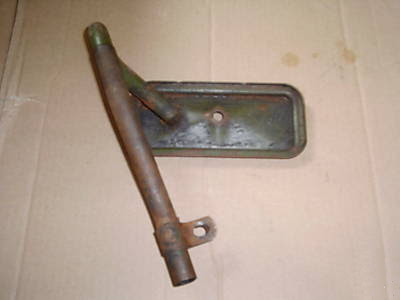

some are the in dent type and some the out dent type as shown in the picture below:
an other thing is the way the breather pipe is fixed to the cover is quite different
Am I right in thinking that the out dent type is the early one that changed to the in dent type at some point?
Toby
|
Mk 3 S Meister
MCR Member
|
Posted: Thursday May 15th, 2008 08:15 pm |
|
| Yes, the dent out type are the early ones.
|
Mini4Ever
MCR Member
| Joined: | Saturday March 17th, 2007 |
| Location: | Netherlands |
| Posts: | 512 |
|
Posted: Thursday May 15th, 2008 08:35 pm |
|
Are you sure the one in the picture is from a Mini? I am thinking that it might be from an A35/Minor or so. They have the longer tube down.
There is an even earlier type of cover that does not have the final edge pointing inwards or outwards. Tried to make a picture of that on a totally original late 1962 engine (850). Will need 3 posts to put all pictures in...
Attachment: IMG_1147.JPG (Downloaded 76 times)
|
Mini4Ever
MCR Member
| Joined: | Saturday March 17th, 2007 |
| Location: | Netherlands |
| Posts: | 512 |
|
Posted: Thursday May 15th, 2008 08:36 pm |
|
| This picture highlights the egde from the side. Attachment: IMG_1148.JPG (Downloaded 66 times)
|
Mini4Ever
MCR Member
| Joined: | Saturday March 17th, 2007 |
| Location: | Netherlands |
| Posts: | 512 |
|
Posted: Thursday May 15th, 2008 08:37 pm |
|
And this picture sows how the early ones look on a 1275S with positive crankcase ventilation and yes the one with the oil separator is quite hard to find  Attachment: IMG_1149.JPG (Downloaded 85 times)
|
masnarda
Member
| Joined: | Sunday January 7th, 2007 |
| Location: | Netherlands |
| Posts: | 204 |
|
Posted: Thursday May 15th, 2008 09:23 pm |
|
the one in the picture I posted is with the rubber tube fitted with the clip to secure it on the backside of the block
I will try to get a picture online with the several different ones I have kicking aboutLast edited on Thursday May 15th, 2008 09:26 pm by masnarda |
1071bob
MCR Member
| Joined: | Thursday November 22nd, 2007 |
| Location: | |
| Posts: | 147 |
|
Posted: Thursday May 15th, 2008 10:34 pm |
|
The one in Toby's picture is the same as mine [march '64 1071]. The reason for the 'strange' routing of the pipe is:-
1/ To try and keep the oil in the engine !
2/ To give clearance to the cooper type exhaust
regards Bob
Attachment: breather 002.jpg (Downloaded 75 times)
|
mk1
Member
|
Posted: Friday May 16th, 2008 12:56 pm |
|
The one on my 1071 is also like the one in the first picture too. I have also had a 997 Cooper with a similar one, but I can't be sure that was original fitment. I am however 99% sure the 1071 is.
M.
|
sjb38
MCR Member
|
Posted: Friday May 16th, 2008 05:29 pm |
|
I have just bought an original 1071 engine today. (Been after it for about 5 years). Should pick it up next week. I'll have a look at the covers then.
|
mk1coopers
MCR Member
| Joined: | Wednesday September 12th, 2007 |
| Location: | |
| Posts: | 163 |
|
Posted: Friday May 16th, 2008 06:37 pm |
|
My 63 1071 also has the breather in the 1st picture
|
ka2s4
Member
|
Posted: Saturday May 17th, 2008 11:42 am |
|
So does the 'dent out' type also have the rim that does not hold the gasket in - i.e. the lip goes away from the block, not towards it?
J
|
1071bob
MCR Member
| Joined: | Thursday November 22nd, 2007 |
| Location: | |
| Posts: | 147 |
|
Posted: Saturday May 17th, 2008 01:15 pm |
|
Correct James,
These type of covers had the annoying habit of the gasket slipping out of the side and sprewing the oil out With the early cork gaskets it wasn't too bad but when the gaskets changed to the more 'slippery' neoprene type it became much worse
The trick was to glue the gasket to the cover before fitting.
The later 'dent in' covers had a return on the flange to keep the gasket in place.
Picture is the early type. regards Bob
Attachment: tappet cover.jpg (Downloaded 53 times)
|
Mini4Ever
MCR Member
| Joined: | Saturday March 17th, 2007 |
| Location: | Netherlands |
| Posts: | 512 |
|
Posted: Saturday May 17th, 2008 05:51 pm |
|
| Brilliant, those the 1071 ones!
|
1071bob
MCR Member
| Joined: | Thursday November 22nd, 2007 |
| Location: | |
| Posts: | 147 |
|
Posted: Saturday May 17th, 2008 06:08 pm |
|
Mini4Ever wrote: Brilliant, those the 1071 ones!
At least it kept the bulkhead and floorpan well oiled!
Bob
|
Mini4Ever
MCR Member
| Joined: | Saturday March 17th, 2007 |
| Location: | Netherlands |
| Posts: | 512 |
|
Posted: Sunday May 18th, 2008 06:28 pm |
|
| Here is how they look on a Morris Minor - if anybody cares Attachment: IMG_1157.JPG (Downloaded 46 times)
|
kwjcoopermk2
Member
| Joined: | Friday January 19th, 2007 |
| Location: | Virum, Denmark |
| Posts: | 97 |
|
Posted: Tuesday May 20th, 2008 09:49 pm |
|
Hi
Do someone have a spare set of 1071 chest covers as mine are missing
Regards Kristian
|
